What Is a 5050 LED Strip? Meaning, Uses & Buyer Guide

First, do not choose an LED strip by chip number alone. That can lead to the wrong spec.

For example, a buyer may see 5050, 3528, 2835, RGB, RGBW, IP ratings, or “high brightness” on different product pages and assume the biggest number is automatically the best choice. However, the LED package is only one part of the strip design.

So, this guide explains what a 5050 LED strip means, how it compares with other common SMD LED strip types, and what buyers should check before they ask for a quote.

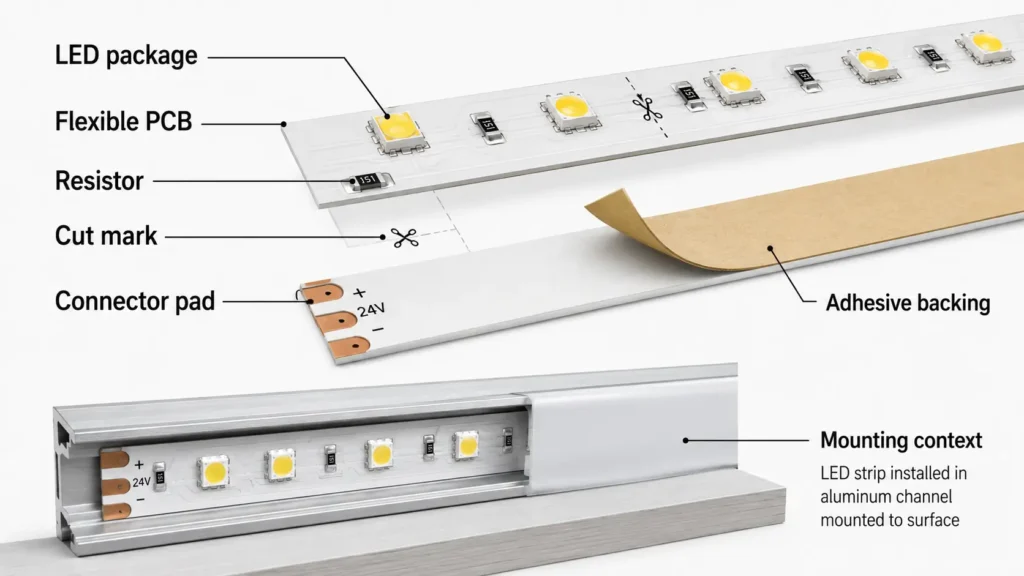

What Is a 5050 LED Strip?

A 5050 LED strip is an LED strip that uses SMD LED packages measuring about 5.0 mm × 5.0 mm. In short, the number “5050” describes the LED package size. However, it does not, by itself, promise brightness, life span, quality, IP rating, protection for the use area, or addressable control. Therefore, buyers should also compare voltage, LED density, color type, power, controller needs, heat conditions, IP rating, and supplier documents.

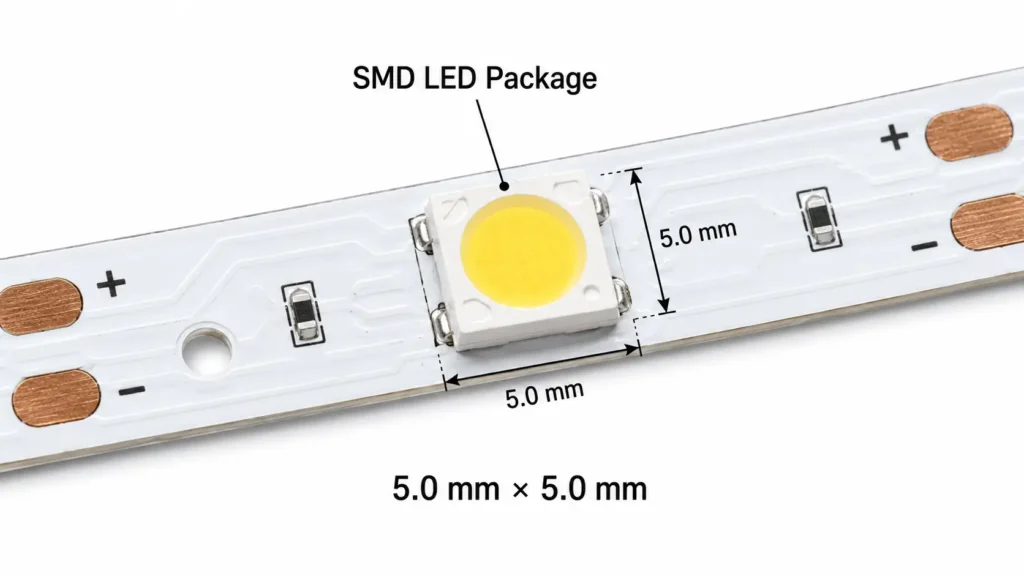

What Does SMD 5050 Mean?

SMD means surface-mounted device. In LED strip lighting, it means LED packages mounted directly on the flexible circuit board.

5050 refers to the approximate package size: 5.0 mm × 5.0 mm.

So when a product is described as an SMD 5050 LED strip, it usually means the strip uses LED packages in that size category.

Also, this number helps name the LED package type, but it is not the whole product spec. For example, a complete LED strip spec may also include:

Specification	Why It Matters
Voltage	Must match the power supply and system design.
LED density	Affects light distribution and power demand.
Color type	Single color, tunable white, RGB, RGBW, or addressable formats need different controls.
Power rating	Used to calculate power supply requirements.
PCB design	Affects current handling, heat behavior, and installation flexibility.
IP rating	Helps match the strip to indoor, humid, or outdoor conditions.
Cut length	Determines how the strip can be sized during installation.
Controller compatibility	Important for dimming, RGB, RGBW, or addressable lighting.

5050 Is Not the Whole Specification

However, a common mistake is to treat the LED package number as a shortcut for output.

The 5050 package size tells you the size of the LED package. However, it does not tell you by itself:

how bright the full strip will be;
how much power the strip will draw;
how long the strip will last;
what IP rating or use-area protection the strip has;
whether the strip is addressable;
whether the strip is suitable for a specific project;
whether the supplier can provide the documents you need.

Instead, those details depend on the full strip design, parts, work conditions, install area, and supplier documents.

Therefore, the safer buyer question is not “Is 5050 better?” but:

Does this 5050 LED strip setup match my voltage, color, brightness target, control method, install length, use area, and document needs?

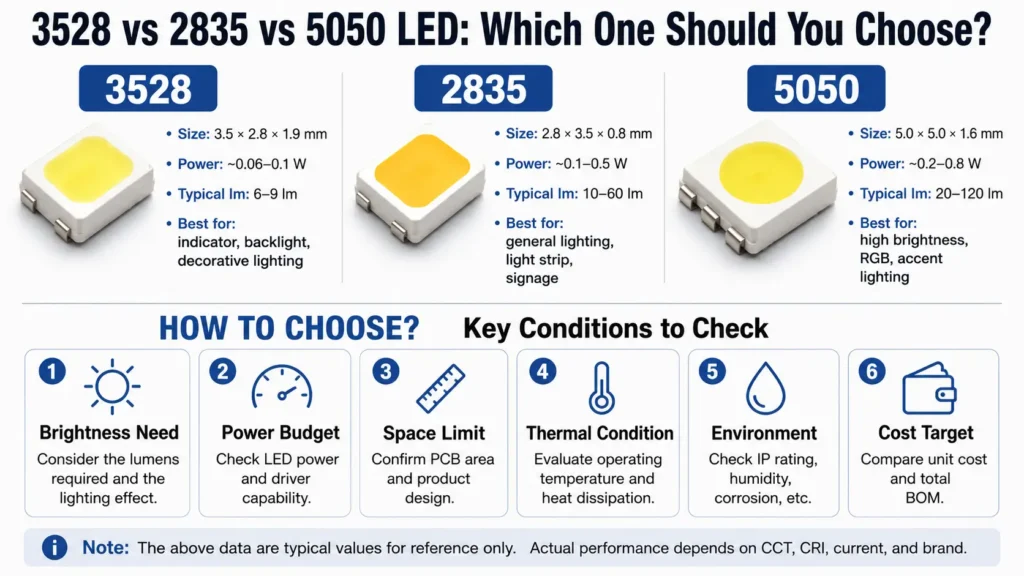

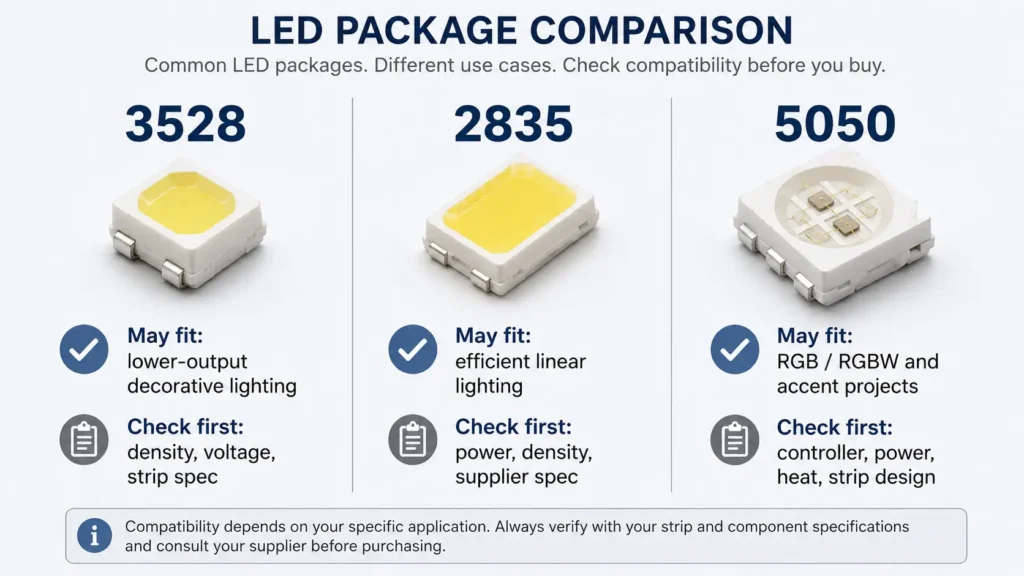

5050 vs 3528 vs 2835 LED Strips

5050, 3528, and 2835 are common SMD LED package references used in LED strip lighting. They are often compared. However, one package is not better for every use.

SMD Type	What the Number Means	Common Buyer Question	Practical Selection Note	Avoid Assuming
3528	Approx. 3.5 mm × 2.8 mm package	Is it enough for lower-output or decorative lighting?	Often considered when a compact package or lower-power design is acceptable.	Do not assume all 3528 strips have the same output or quality.
2835	Approx. 2.8 mm × 3.5 mm package	Is it efficient for linear lighting?	Often compared in many strip designs. Still, the actual result depends on strip design and supplier specs.	Do not compare by package number alone.
5050	Approx. 5.0 mm × 5.0 mm package	Is it suitable for RGB or higher-output strip designs?	Often considered for single-color, RGB, RGBW, and decorative or project lighting types.	Do not assume it is always brighter, better, or addressable.

For buying and engineering teams, a comparison table is useful only when it leads to a spec check. So, ask for the actual strip data, not only the package number.

Selection Factors for 5050 LED Strip Projects

A 5050 LED strip may fit many projects. However, the final choice depends on the project needs.

Before you shortlist a product, use this table.

Selection Factor	What to Confirm	Why It Matters	Risk If Ignored
Voltage	12V, 24V, or project-specific requirement	The strip and power supply must match.	As a result, wrong voltage can cause poor operation or product damage.
LED density	LEDs per meter or per roll	Affects light evenness and power demand.	Light may look uneven or draw more power than expected.
Color type	Single color, RGB, RGBW, tunable white, addressable	Sets the controller and wiring needs.	Wrong controller or wiring plan.
Power rating	Watts per meter or per roll	Needed for power supply selection.	As a result, the power supply may be too small, or voltage drop may occur.
Strip length	Total run length and cut segments	Also affects power injection and install planning.	Uneven brightness or difficult installation.
PCB width/design	Strip width, copper design, bending needs	Affects fit, handling, and heat behavior.	Strip may not fit the channel or installation area.
Heat conditions	Enclosure, aluminum profile, airflow, ambient temperature	Heat affects LED strip output and work conditions.	Overheating risk or reduced reliability.
IP rating	Indoor, splash-prone, humid, or outdoor condition	Helps match the protection level to the use area.	Using the wrong strip in the wrong environment.
Controller	Dimmer, RGB controller, DMX, SPI/addressable controller	Required for color and dynamic effects.	Control system may not work with the strip.
Documentation	Datasheet, wiring diagram, test report, certification if required	Supports buying and engineering review.	As a result, purchase approval may be delayed.

RGB, RGBW, and Addressable 5050 LED Strips

Also, many buyers link 5050 LED strips with color-changing light. That is understandable because 5050 packages are commonly seen in RGB and RGBW strip formats.

However, 5050 does not automatically mean RGB. Also, it does not automatically mean addressable.

Term	What It Means	What Buyers Should Check
5050	LED package size, about 5.0 mm × 5.0 mm	Confirms package type only.
RGB	Red, green, and blue color channels	Requires compatible RGB controller and wiring.
RGBW	RGB plus a separate white channel	Requires RGBW-compatible controller and wiring.
Addressable	Individual or grouped LEDs can be controlled through a data signal	Requires compatible IC/design, controller, voltage, and data wiring.

So, a 5050 strip can be part of an RGB or addressable strip design, but the word “5050” alone does not prove that. Therefore, always check the product spec and wiring diagram.

Where 5050 LED Strips Are Commonly Considered

5050 LED strips are often considered when buyers need a flexible strip and are comparing color, brightness target, control method, and install conditions.

However, the examples below are selection contexts, not claims that the strip fits every use. So, the final choice depends on the product spec and project area.

Application Context	Why 5050 May Be Considered	Specs to Confirm	Caution
Decorative lighting	Available in many color formats	Color type, controller, density, strip length	Do not choose only by chip size.
Retail or display lighting	May support visual accent effects	Color consistency, power, heat, mounting channel	Confirm actual strip data.
Signage or accent lighting	Flexible strip format can fit custom shapes	Voltage, density, IP rating, cutting length	Also, outdoor or humid use needs product-specific protection.
RGB/RGBW lighting projects	5050 packages are often used in multicolor strips	Controller type, wiring, color channels, power	RGB/RGBW must be confirmed in the specification.
OEM or custom projects	Package type may be one part of the custom design	Length, PCB, connector, color, packaging, documentation	Therefore, custom capability must be confirmed with the supplier.

Power, Heat, IP Rating, and Installation Conditions

Even when the LED package is correct, a 5050 LED strip project can still run into problems. Often, the cause is a system-level mismatch.

Power Supply

First, start with the strip voltage. Then, calculate the total power need from the strip’s rated power and total length.

A simple plan is:

confirm strip voltage;
confirm watts per meter or watts per roll;
multiply by total installed length;
choose a compatible power supply with appropriate capacity according to supplier guidance;
also consider voltage drop and power injection for longer runs.

Do not use one power supply rule for every strip without checking the actual strip rating. Also, final power-supply size should follow the strip datasheet and supplier guidance.

Heat

Next, heat conditions matter. Dense LED strips, closed channels, long runs, and high-power setups may need better heat planning.

Check:

mounting surface;
aluminum profile or heat-dissipation path;
airflow;
ambient temperature;
operating duration;
whether the strip is installed in an enclosed space.

IP Rating

IP rating relates to ingress protection. It helps describe protection against dust and water under set conditions.

For buyers, the key point is simple: match the IP rating to the use area, and ask for product-specific documentation when the project needs it.

Therefore, do not assume every 5050 LED strip is protected for humid or outdoor conditions. Confirm the exact strip model. Also, use the product-specific IP rating and supplier documents for that model.

Cutting and Connecting

Finally, many LED strips can be cut only at marked cut points. Cutting in the wrong place may damage the circuit.

Before installation, confirm:

marked cut interval;
solder pad or connector type;
maximum run length;
wiring direction;
power injection needs;
controller compatibility;
installation instructions for the specific strip.

RFQ Checklist for 5050 LED Strip Projects

A clear RFQ helps the supplier understand the project. As a result, the supplier can suggest a better strip setup.

Before you ask for a quote, prepare these details:

RFQ Item	What to Provide
Application	Decorative, display, signage, cabinet, architectural, OEM, or other use.
Installation environment	Indoor, humid area, outdoor, enclosed channel, high-temperature area, or other condition.
Voltage	Required voltage or system voltage.
Total length	Total meters, roll length, or segment lengths.
LED density	LEDs per meter if already specified, or target light uniformity.
Color type	Single color, RGB, RGBW, tunable white, or addressable.
Color temperature or color requirement	For white strips, specify CCT if known. For RGB/RGBW, specify control needs.
IP rating requirement	State whether the strip needs protection against moisture, dust, or outdoor exposure.
Controller needs	Dimming, RGB, RGBW, addressable, DMX, SPI, app control, or simple on/off.
Power supply plan	Existing supply or need for recommendation.
Mounting method	Aluminum profile, adhesive backing, clips, channel, or custom housing.
Quantity	Estimated order quantity or project volume.
Documents needed	Datasheet, wiring diagram, test report, certificate, or other procurement documents if required.
Custom requirements	PCB width, connector, packaging, labeling, roll length, or sample/custom requirements.

However, this checklist does not replace product engineering review. Instead, it helps make the first supplier talk more useful.

What Documents Should Buyers Ask For?

For buying or engineering review, ask the supplier what documents are available for the exact product you plan to buy.

For example, useful documents may include:

Document	Why It Helps
Product datasheet	Confirms voltage, power, density, color, dimensions, and electrical data.
Wiring diagram	Helps plan power supply, controller, and installation layout.
IP rating information	Supports environment matching.
Test report, if required	Helps with project or buyer approval when test proof is needed.
Certification document, if required	Should be product-specific and current.
Installation guidance	Helps installers understand cut points, connection method, and handling limits.
Packaging or labeling details	Useful for distributors and OEM buyers.

Therefore, do not rely on broad claims such as “certified,” “waterproof,” or “long life span” without checking the document that supports the exact product and use.

FAQ

What does 5050 mean in LED lights?

5050 means the SMD LED package measures about 5.0 mm × 5.0 mm. It identifies the LED package size, not the full LED strip spec.

What does SMD mean in SMD 5050?

SMD means surface-mounted device. In LED strip lighting, it means an LED package mounted directly on the flexible circuit board.

Is 5050 better than 3528 or 2835?

Not always. 5050, 3528, and 2835 describe LED package sizes. The better choice depends on the strip design, LED density, power rating, color type, controller, heat conditions, and use needs.

Does 5050 guarantee higher brightness?

No. A 5050 package may be used in higher-output strip designs, but brightness is not promised by package size alone. Check the product datasheet, LED density, wattage, parts, and work conditions.

Are 5050 LED strips addressable?

Some 5050 LED strips are addressable, but not all. 5050 describes the LED package size. Addressability depends on whether the strip includes compatible control ICs, data wiring, and a matching controller.

What power supply do I need for a 5050 LED strip?

Check the strip voltage first. Then calculate total power from the strip’s rated power and total installed length. Also, final power-supply size should follow the strip datasheet and supplier guidance.

Can 5050 LED strips be cut?

Many LED strips can be cut, but only at marked cut points. Always follow the manufacturer’s instructions for the exact strip model.

What should I check before buying 5050 LED strips in bulk?

Check voltage, LED density, color type, power rating, strip length, IP rating, controller fit, installation area, document needs, quantity, and any custom needs.

Need Help Choosing a 5050 LED Strip?

If you are comparing 5050 LED strips for a project, prepare the key details before contacting a supplier.

Share your voltage, total length, LED density, color type, IP rating requirement, controller needs, quantity, installation environment, document requirements, and any custom size, connector, or packaging needs.

Then, with those details, the supplier can review the project conditions and suggest a more suitable 5050 LED strip setup.
