DIY Lightbox Display: How to Choose LED Strips, Diffusers, and Power Parts

A DIY lightbox display can look simple from the outside: a frame, a translucent front panel, and lights inside. However, the part that often causes problems is not the box itself. It is the lighting setup.

A sparse LED strip may show visible dots. Meanwhile, a mismatched power supply may prevent the strip from working as expected. Also, a diffuser placed too close to the LEDs can leave the front surface uneven. For that reason, before buying parts, it is worth checking the LED strip, diffuser, power supply, connector path, and control method together.

Quick Answer

To choose parts for a DIY lightbox display, first confirm the display size, LED strip length, strip voltage, color requirement, diffuser material, diffuser distance, power supply rating, control method, and installation environment. In other words, a good setup depends on the whole layout, not only the LED strip. Also, if you plan to request a quote, prepare these details before asking a supplier for recommendations.

What Parts Do You Need for a DIY Lightbox Display?

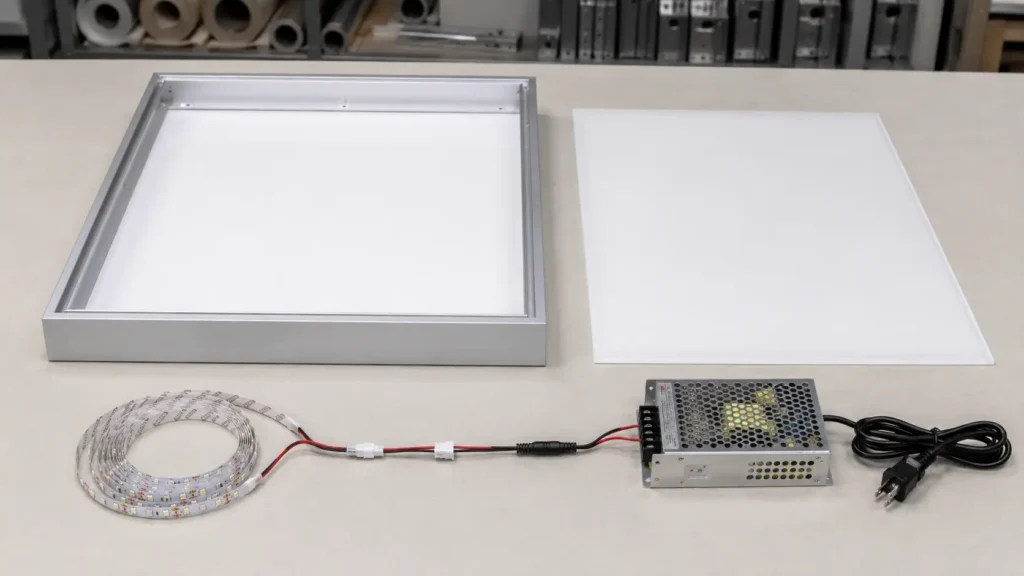

A basic DIY lightbox display usually includes a frame, a translucent front panel, an LED strip or light source, a power supply, and a way to connect and mount the lighting. However, the exact parts depend on whether the lightbox is for photography, artwork, retail signage, or a display frame. For broader construction steps, use the related DIY light box steps article; meanwhile, this guide focuses on choosing the lighting components.

Common parts include:

A box or frame structure
A translucent diffuser, acrylic sheet, fabric, or similar front surface
LED strip lights or another suitable light source
A power supply or LED driver matched to the strip
Connectors, wires, or soldered joints, depending on the strip and layout
A switch, dimmer, or controller if brightness or color control is needed
Mounting tape, clips, channels, or profiles
A plan for cable exit and power access

The frame gives the display its shape, but the lighting parts decide how usable it is. For example, a small photo lightbox may only need a simple setup. By contrast, a larger sign, poster frame, or retail display may need more careful planning around strip layout, power, diffusion, and maintenance access.

DIY Lightbox Display Use Cases: Photo, Art, Retail, and Signage

In practice, not every lightbox display has the same lighting goal. For example, a product photo box, a backlit art frame, and a retail display can all use LED strips, but they do not create the same selection problem.

Use Case	Main Goal	Lighting Concern	Component Focus	Details to Confirm
Product photography lightbox	Soft light around a small object	Shadows and glare	Diffusion, color appearance, easy control	Box size, object size, light direction, dimming need
Backlit art or poster frame	Even backlighting behind an image	Visible LED dots or uneven areas	Diffuser depth, strip spacing, frame depth	Artwork size, viewing distance, diffuser material
Retail display lightbox	Bright, readable display surface	Consistent appearance across a larger area	Strip layout, power planning, service access	Display size, indoor/outdoor location, power route
Signage or logo display	Clear illuminated graphic	Hot spots, edge shadows, color needs	LED type, diffuser, color/CCT or RGB/RGBW	Graphic size, color requirement, installation method
Prototype or sample display	Test before a larger build	Layout uncertainty	Easy-to-adjust components	Sample size, test goals, later quantity

As a result, use case matters because one factor often affects another. For example, a deeper frame may give more room for diffusion, but it may not fit the display design. Meanwhile, a denser LED strip may help reduce visible points, but it can increase power demand and heat considerations. In addition, a color-changing strip may support visual effects, but it also needs a compatible controller.

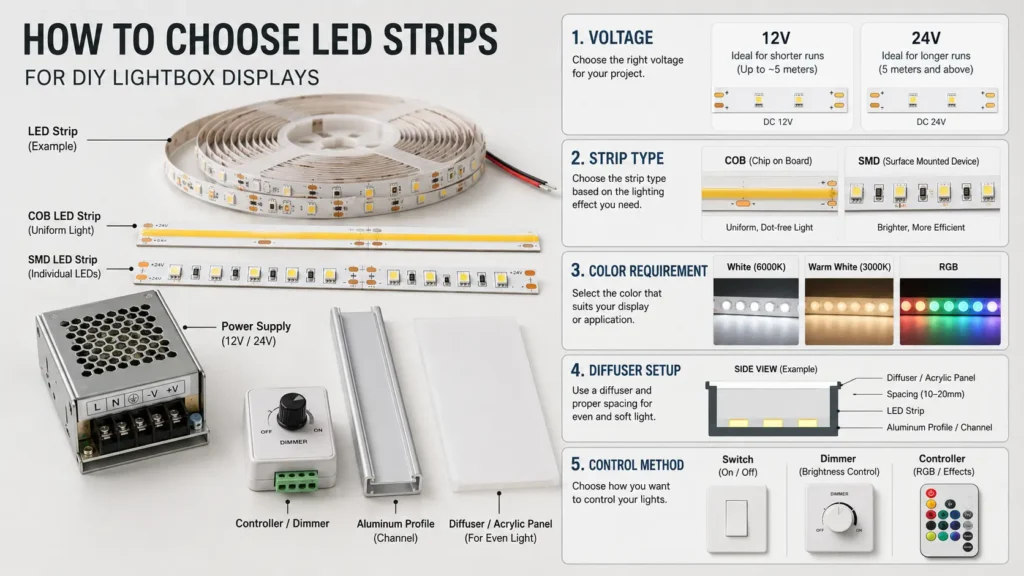

How to Choose LED Strips for a DIY Lightbox Display

Start with size, layout, and diffuser depth

Once the use case is clear, start with the display size and visual goal. Then choose the LED strip around the layout, diffuser, and power plan.

Selection Factor	What to Check	Why It Matters	Safe Decision Rule
Strip voltage	Common strip voltage options and matching power supply	The power supply must match the LED strip system	Do not mix unmatched strip and power supply ratings
Strip length	Total length needed inside the frame	Longer runs change total power demand	Calculate total load from the strip specification
LED density	Spacing between LED points	Wider spacing may make dots more visible through some diffusers	Check with diffuser distance and viewing distance
Strip type	SMD, COB, RGB, RGBW, single-color, or other options	Different strip types suit different visual goals	Choose based on display effect, not only price
Color requirement	White, warm white, neutral white, cool white, RGB, or RGBW	Color affects the display appearance	Match the strip to the image, brand, or display purpose
Diffuser setup	Material, opacity, and distance from LEDs	Diffusion affects smoothness and brightness perception	Test the LED strip with the actual diffuser when possible
Control method	Switch, dimmer, remote, controller, or fixed output	Dimming and color control require compatible parts	Confirm strip, driver, and controller compatibility
Environment	Indoor, humid, dusty, outdoor, or enclosed use	Environment affects housing and protection needs	Do not assume all strips fit all environments

Test the visual result before scaling up

For a lightbox display where visible LED dots are a concern, COB LED strips can be considered because they can appear smoother than widely spaced LED points. However, COB is not a guarantee of a perfect result. Instead, the actual appearance depends on the strip, diffuser, profile or frame depth, viewing distance, and display size.

Therefore, a practical approach is to test a short sample with the same diffuser and frame depth before committing to a larger build.

Power Supply and Control Pre-Check

After the strip choice is narrowed, the power supply should be chosen based on the LED strip voltage, total strip length, and power requirement. Because of this, many DIY problems start when users buy a strip and power supply separately without checking whether they match.

Before choosing a power supply, confirm:

Checkpoint	What to Confirm	Why It Matters
LED strip voltage	The rated voltage of the strip	The power supply output must match the strip system
Strip length	Total installed length	Longer strip length usually increases total load
Power data	Wattage or current from the strip specification	This is needed to estimate total power demand
Power supply output	Output voltage and rated power/current	The supply must support the planned strip load
Control method	On/off, dimming, RGB, RGBW, or smart control	Controllers and drivers must be compatible
Wiring route	Where wires enter and exit the frame	Poor planning can make installation difficult
Access	Whether the power supply and connections can be reached later	Maintenance is harder if everything is sealed

Therefore, use the LED strip specification and total installed length to estimate load; do not choose the power supply from box size alone. For additional background on LED strip power supply sizing, check how voltage, wattage, and amperage are handled before selecting a supply. Also, if the project uses mains power, permanent installation, or an unfamiliar wiring method, ask a qualified person to review the setup.

In addition, dimming also needs compatibility. A dimmable LED strip still needs a suitable dimmer, controller, and LED driver or power supply arrangement. Similarly, RGB or RGBW strips need matching control parts. Therefore, do not assume any controller will work with any strip.

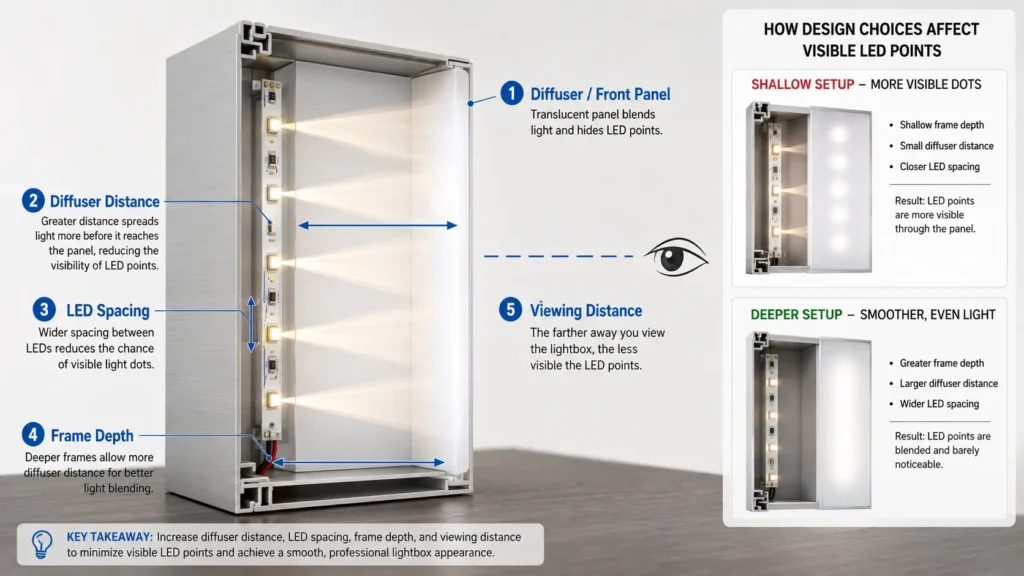

How to Reduce Visible LED Dots in a Lightbox

Check the diffuser and spacing together

Even when the strip and power supply are correct, visible LED dots can still happen when the LED points are too easy to see through the front surface. In practice, this is usually affected by several conditions, not one part alone.

Key factors include:

Distance between the LED strip and diffuser
Distance between individual LED points
Diffuser material and opacity
Frame depth
LED strip layout inside the box
Viewing distance
Brightness setting
Whether the strip is side-lit or back-lit

A diffuser usually works better when there is enough distance between the LED points and the diffuser surface. In addition, external diffuser guidance also notes that LED spacing and diffuser distance affect hotspot reduction. For reference, see this light diffuser FAQ. However, if the frame is very shallow, the diffuser may not have enough space to blend the light. Likewise, if the LED points are far apart, dots may remain visible even with a diffuser.

Adjust the layout before replacing parts

Therefore, to improve the result, consider these options:

Issue	Possible Cause	What to Check
Visible dots	LEDs too close to diffuser or spacing too wide	Increase distance, use denser strip, test another diffuser
Uneven bright areas	Strip layout does not cover the display evenly	Adjust strip path or add more balanced layout
Dark edges	LEDs are too far from the edge or blocked by frame	Review placement and frame shadow
Glare	Diffuser too transparent or light too intense	Try a different diffuser or dimming setup
Color mismatch	Wrong color temperature or inconsistent parts	Confirm strip color/CCT before buying in quantity

Do not rely on a product label alone. Although specification matters, the final appearance also depends on the actual box depth, diffuser, artwork, and viewing distance. For larger displays, a small test section can prevent a full-size mistake.

Cut, Connect, and Test Before Final Mounting

Finally, some LED strips are designed to be cut, but only at marked cut points. However, cutting at the wrong place can break the circuit or leave a section unusable. Before trimming a strip, check whether that strip is cuttable and where the cut marks are located.

Before final mounting, use this short check:

Confirm the strip can be cut.
Cut only at marked cut points.
Check connector compatibility with strip width and pin layout.
Test each strip section before installing it inside the frame.
Test the power supply and controller before sealing the box.
Leave access to parts that may need inspection or replacement.
Avoid tight bends unless the strip design allows them.
Keep wiring neat so it does not cast shadows or block the diffuser.

For mounting, adhesive may be acceptable for some temporary or lightweight projects, but the surface, strip weight, heat, and service time should be checked. However, for a larger display or repeated use, consider whether mechanical support, LED aluminum profiles, or service access are needed.

RFQ Checklist: What to Tell a Supplier

At this point, if you are asking a supplier for LED strip or lightbox display parts, give enough information for a practical recommendation. In most cases, “I need LED strip for a lightbox” is usually not enough.

Next, prepare these details:

Detail	What to Provide
Display size	Outer size and illuminated area
Frame depth	Distance available between LEDs and diffuser
Lighting layout	Back-lit, edge-lit, perimeter strip, grid layout, or unsure
Strip length	Estimated total strip length needed
Color requirement	White CCT, RGB, RGBW, or fixed color
Brightness/control need	Fixed output, dimming, remote control, or controller requirement
Power preference	Voltage preference if already known
Diffuser material	Acrylic, fabric, film, panel, or not selected yet
Environment	Indoor, outdoor, humid, dusty, enclosed, or ventilated
Quantity	Prototype, small batch, or larger project
Installation method	Adhesive, profile, clips, frame channel, or custom mounting
Documents needed	Ask what documents are available for the project if needed

Overall, this checklist also helps you decide whether the project is still a simple DIY build or needs a more reviewed component plan. For example, a small tabletop photo box and a large backlit retail panel have very different risk points.

FAQ

How do you make a lightbox display?

A basic lightbox display is made by placing a light source inside or behind a frame with a translucent front panel. For a simple DIY version, the frame can be a box or rigid structure, and the front can be a diffuser or acrylic sheet. However, for a cleaner result, plan the LED strip, diffuser distance, power supply, and wiring path before assembly.

How do you make a homemade light box?

A homemade light box can be made with a box or frame, a translucent surface, and a light source. For photography, people often use a simple diffused box. However, for a display-style lightbox, LED strips are common, but you should check voltage, strip length, diffuser setup, and power supply compatibility before installing the lights.

What can I use instead of a light box?

Alternatives depend on the purpose. For photography, you may use natural window light, a softbox, LED panel, photo tent, or diffused lamp setup. Meanwhile, for display use, you may use a backlit frame, LED panel, or ready-made display lightbox. Therefore, the right option depends on size, portability, brightness control, and the visual result you need.

How do you make a box frame with lights?

Start with a rigid frame, plan where the diffuser or front panel will sit, then decide where the LED strip will be mounted. Next, leave space for the power supply connection and wiring exit. Before final mounting, test the strip, power supply, controller, and diffuser together so you can adjust the layout if dots or shadows appear.

What power supply do I need for LED strip lights?

First, check the LED strip voltage and total power requirement. Then, the power supply should match the strip voltage and be rated for the total planned load. In addition, total load depends on the strip specification and installed length. If the setup involves mains wiring or permanent installation, ask a qualified person to review it.

How do I reduce LED dots in a lightbox?

Visible LED dots can often be reduced by increasing the distance between LEDs and diffuser, using a suitable diffuser material, choosing a denser strip layout, or testing a strip type that appears smoother through the front panel. Still, the result depends on the actual frame depth, diffuser, strip spacing, and viewing distance.

Can I dim LED strips in a DIY lightbox?

Yes, dimming may be possible, but it depends on the LED strip, power supply, controller, and wiring setup. However, do not assume every strip can use every dimmer. Instead, confirm that the dimmer or controller is compatible with the strip type and power arrangement.

What should I tell a supplier before buying LED strips for a lightbox?

Provide the display size, frame depth, estimated strip length, color requirement, diffuser material, installation environment, control method, quantity, and any document needs. Also, if you are unsure about the layout, share drawings, photos, or a sketch so the supplier can review the component requirements more accurately.

Need Help Reviewing Your DIY Lightbox Display Parts?

Before buying LED strips or requesting a quote, prepare your lightbox size, strip length, color requirement, diffuser setup, installation environment, control method, and quantity.

Share those details for review so the lighting parts can be checked as a complete setup: LED strip, power supply, connectors, controller, diffuser, and mounting path.
