Choosing between a 5V and 12V LED strip is not just a small product detail. Also, the choice affects the power supply, controller compatibility, voltage drop, wiring plan, and how consistent the strip looks over the installed length.
The right choice depends on how the strip will be used. For example, a short decorative run, a USB-powered project, and a pixel-controlled display may point toward one voltage. However, a longer continuous run, a simpler wiring plan, or a project with more distance from the power supply may point toward another.
Therefore, this guide compares 5V and 12V LED strips from a practical selection view. As a result, buyers, installers, engineers, and procurement teams can define the right voltage before purchase or RFQ.

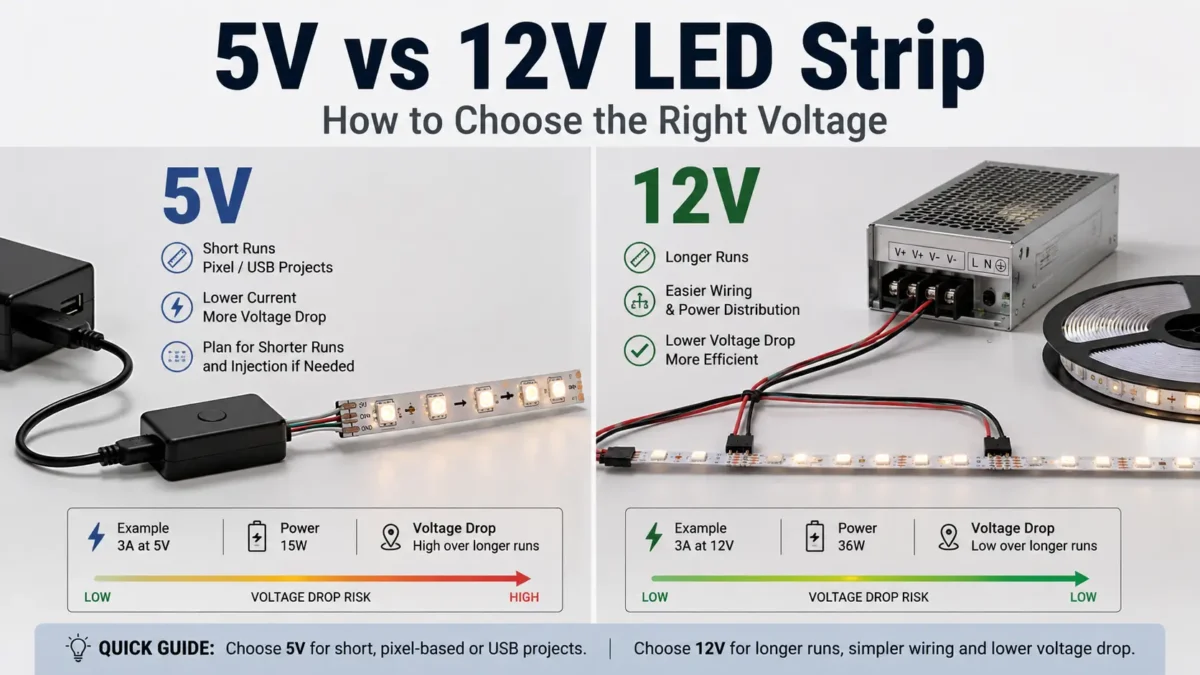

In general, choose a 5V LED strip for short runs, USB or battery-style setups, and many detailed addressable pixel projects. However, choose a 12V LED strip when the run is longer and you want lower current at the same wattage, which can reduce voltage-drop pressure. Therefore, do not choose by voltage alone. Also, check strip type, wattage, controller voltage, power supply, run length, and installation layout.

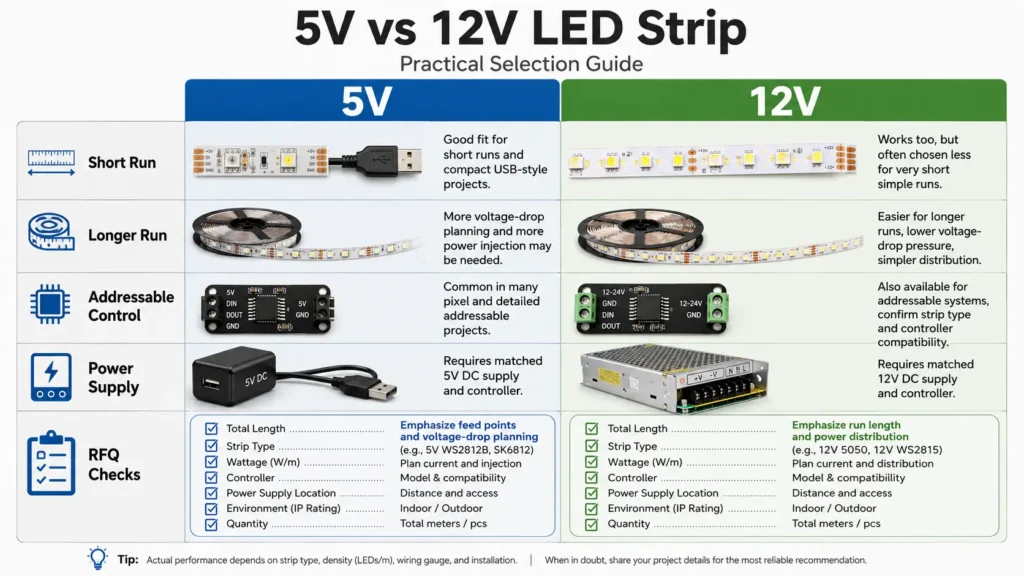

| Factor | 5V LED Strip | 12V LED Strip | What to Check Before Buying |
|---|---|---|---|
| Typical project fit | Short runs, compact projects, USB-style power, many addressable pixel layouts | Medium-length runs, cabinet lighting, signage, decorative lines, simpler power distribution | Total length, LED type, controller, and power source |
| Current at the same wattage | Higher current than 12V at the same power | Lower current than 5V at the same power | Power supply capacity and wiring layout |
| Voltage drop sensitivity | More sensitive to voltage drop over distance | Usually less sensitive than 5V for the same power load | Strip wattage, feed points, wire length, and layout |
| Brightness | Not automatically lower or higher | Not automatically higher or lower | Compare lumens, LED density, watts per meter, and product design |
| Power supply | Requires compatible 5V DC supply | Requires compatible 12V DC supply | The supply voltage must match the strip voltage |
| Controller compatibility | Controller must support 5V strip type | Controller must support 12V strip type | Check controller output voltage and strip type |
| Main caution | Longer runs may need more careful power planning | Still needs voltage-drop planning on longer or high-power runs | Do not assume voltage alone solves the design problem |
In short, the main difference is not that one voltage is always better. Instead, the key difference is how much current the strip draws for a given power level. Because of this, voltage choice affects voltage drop, power injection, and installation complexity.
First, LED strips are usually selected by voltage and power. For example, power is commonly expressed as watts per meter or watts per foot. As a result, a higher-voltage strip draws less current than a lower-voltage strip at the same power load.

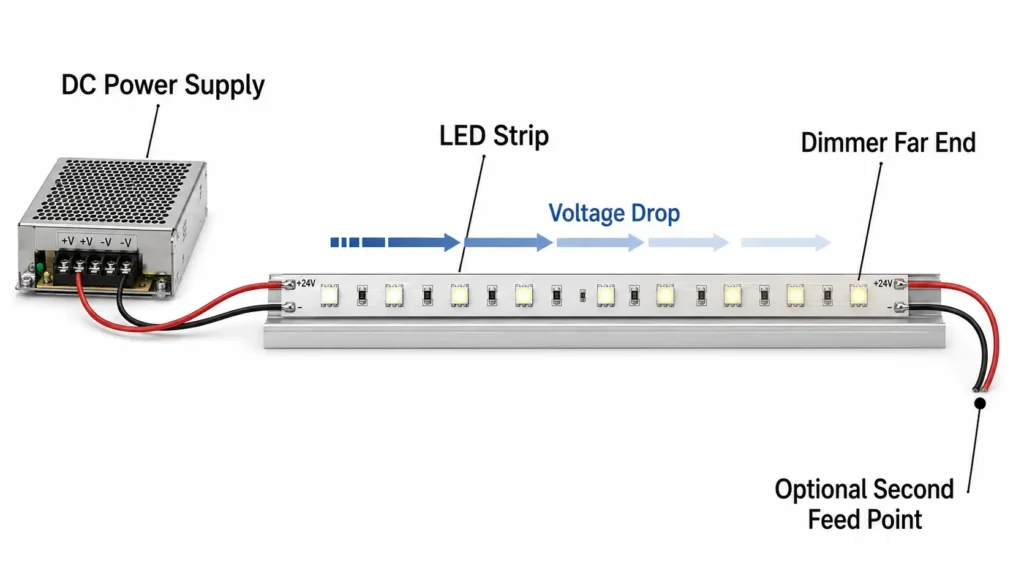

Because of this, current, wire resistance, and distance all affect voltage drop. As a result, when voltage drops along the strip or cable, the far end of the strip may appear dimmer or less consistent, especially in longer or higher-power installations.
| Planning Factor | Why It Matters | Practical Selection Note |
|---|---|---|
| Voltage | Defines the required power supply and controller voltage | Match the strip, power supply, and controller voltage |
| Wattage per meter | Determines total power demand | Multiply strip wattage by installed length |
| Current | Higher current can increase voltage-drop pressure | At the same wattage, 5V draws more current than 12V |
| Wire length | Longer wiring adds resistance | Keep power paths practical and planned |
| Feed points | Additional feed points can reduce visible drop | Longer or higher-power runs may need more than one feed point |
| Layout | Corners, distance, and strip grouping affect power planning | Confirm layout before ordering |
As a result, a 12V LED strip can often be easier to plan for medium-length runs than a 5V strip because the current is lower at the same wattage. However, this does not mean 12V avoids voltage drop completely. Even so, long, high-power, or poorly wired 12V installations can still show voltage drop.
No. In short, a 12V LED strip is not automatically brighter than a 5V LED strip.
Instead, brightness depends on the strip design, not voltage alone. Also, important factors include LED density, LED package and emitter efficiency, lumens per meter or foot, watts per meter or foot, PCB design, voltage drop over the installed length, and power supply/controller capacity.
For example, a well-designed 5V strip can be bright in the right application. Meanwhile, a poorly planned 12V strip can still look uneven if the run is long, the wiring is undersized, or power is supplied from only one end when additional feed points are needed.
Therefore, compare the actual product specifications instead of assuming that higher voltage means higher brightness. In addition, for higher-output projects, you can review this bright LED strip selection guide.
In general, a 5V LED strip is often a good fit when the project is short, compact, or needs detailed control.
| Scenario | Why 5V May Fit | What to Confirm |
|---|---|---|
| Short decorative run | Distance is limited, so voltage drop may be easier to manage | Total length and strip wattage |
| USB-style project | Many USB power sources are 5V | Power source capacity and connector type |
| Battery-style setup | Some portable systems use 5V power architecture | Runtime, current draw, and battery output |
| Addressable pixel project | Many addressable LED projects use 5V strips or pixels | Strip chipset, controller voltage, data wiring, and feed points |
| Prototype or small display | Easy to test in short sections | Power budget and thermal conditions |
However, 5V is not the best choice for every addressable project, and not every addressable strip is 5V. Therefore, always check the actual strip voltage, controller type, and wiring plan.
Because of this, the main risk with 5V is voltage drop over distance. However, if the strip is long or high-power, the design may still work with additional power feed points. Also, procurement teams should include total length, strip wattage, and installation layout in the RFQ.
In many cases, a 12V LED strip is a good fit when the project needs a longer run, simpler power distribution, or lower current than a comparable 5V load.
| Scenario | Why 12V May Fit | What to Confirm |
|---|---|---|
| Medium-length decorative run | Lower current at the same wattage can reduce voltage-drop pressure | Total length and wattage per meter |
| Cabinet or shelf lighting | 12V systems are common in many constant-voltage lighting layouts | Power supply location and dimmer compatibility |
| Signage or display lighting | May need more practical power distribution than 5V | Run length, brightness target, and installation environment |
| Multiple strip segments | Power planning may be easier than with 5V in some layouts | Segment length, feed points, and controller capacity |
| General linear lighting | 12V can be a practical default for many non-pixel strip projects | LED type, color, dimming method, and power supply |
Even so, a 12V strip still needs a proper voltage-drop plan. However, if the run is long, high-power, or far from the power supply, one-end power may not be enough. Therefore, additional feed points or a different voltage may be needed depending on the project.
First, the strip, power supply, and controller must be compatible. Otherwise, a voltage mismatch can cause poor performance or damage.
| Item | What to Check | Why It Matters |
|---|---|---|
| Strip voltage | 5V or 12V rating on the strip | The power supply must match this rating |
| Power supply voltage | 5V DC for 5V strips, 12V DC for 12V strips | Wrong voltage can cause under-driving or damage |
| Power supply capacity | Total wattage plus suitable design margin | Undersized supplies can cause dimming or instability |
| Controller voltage | Output voltage must match the strip | A controller rated for one voltage may not suit another |
| Strip type | Single color, tunable white, RGB, RGBW, addressable, COB, etc. | Different strip types need different controllers |
| Polarity and connector type | Positive/negative wiring and connector fit | Incorrect wiring can prevent operation or damage components |
| Feed points | One end, both ends, or multiple power injection points | Longer runs may need more than one feed point |
| Installation environment | Indoor, outdoor, humid, enclosed, or exposed | Environment affects strip type, IP rating, and power layout |
Usually, a 12V strip powered by 5V will not operate correctly. For instance, it may be very dim or may not light as expected, depending on the strip design. Therefore, use the rated voltage unless the product documentation clearly says another input range is supported.
For example, a higher-voltage supply connected to a lower-voltage strip can damage LEDs or components. Therefore, do not connect a 12V supply to a 5V strip unless the product documentation explicitly supports that setup.
Even though this article compares 5V and 12V, 24V also often enters the decision for longer continuous LED strip installations.
In some cases, a 24V strip may be worth considering when the run is longer, the project uses higher total wattage, voltage drop is a major concern, the installation needs fewer feed points, and compatible 24V strips, controllers, and power supplies are available.
However, the benefit is not magic. At the same wattage, a higher-voltage system draws less current, which can reduce voltage-drop pressure. Therefore, 24V can help in some layouts, but it is not automatically the correct answer. Instead, it must match the strip type, controller, power supply, dimming method, installation space, and project requirements.
For short pixel projects, 5V may still be practical. Meanwhile, 12V may be enough for many medium strip runs. By comparison, for longer continuous runs, 24V should be part of the selection discussion.
For B2B purchasing, the best voltage choice depends on the project details. Therefore, a supplier or technical team cannot make a reliable review from “5V or 12V?” alone.
| RFQ Detail | What to Provide |
|---|---|
| Target voltage | 5V, 12V, or undecided |
| Total strip length | Length per segment and total project length |
| Strip type | Single color, RGB, RGBW, addressable, COB, etc. |
| Wattage | Watts per meter or watts per foot if known |
| LED density | LEDs per meter or desired brightness level |
| Color / CCT | Single color, RGB, tunable white, specific CCT, or custom color requirement |
| Control method | Switch, dimmer, PWM controller, SPI controller, DMX, app control, or other system |
| Power supply location | Distance from supply to strip and number of feed points |
| Installation environment | Indoor, outdoor, humid, enclosed, high-temperature, or visible installation |
| IP rating need | Dry indoor, splash-resistant, or outdoor-rated requirement |
| Mounting surface | Aluminum channel, cabinet, sign box, furniture, wall, ceiling, or other surface |
| Drawings or layout | Sketch, CAD, photos, or installation dimensions |
| Quantity | Sample quantity and estimated production quantity if available |
| Document needs | Datasheet, test report, compliance document, or other required file, if needed |
Overall, this checklist helps a technical team review the voltage, power supply, controller, and layout options more accurately. In addition, for custom strip requirements, prepare the same details before starting a custom LED strip review. As a result, it also reduces back-and-forth during quotation.
They can be, depending on the strip design. However, brightness is not decided by voltage alone. Therefore, compare lumens, LED density, emitter efficiency, watts per meter, and voltage drop across the installed length.
No. In many longer runs, 12V is easier to plan because it draws less current at the same wattage. However, 5V can be better for short runs, USB-style projects, and many detailed addressable pixel applications. Therefore, choose by project conditions.
Often, they need more careful power planning over distance because 5V systems draw higher current at the same wattage. Therefore, longer or higher-power 5V runs may need additional feed points. Still, the final layout depends on strip power, wire length, and installation design.
Usually, a 12V LED strip connected to 5V may not work correctly or may appear very dim. Therefore, use a power supply that matches the strip’s rated voltage unless the product documentation clearly supports another voltage range.
Yes, it can. For example, a higher-voltage supply can overdrive a lower-voltage strip and damage LEDs or components. Therefore, match the power supply to the strip’s rated voltage.
Yes, it is possible only if each strip has the correct power supply, controller compatibility, and wiring plan. However, do not connect 5V and 12V strips to the same output circuit unless the system is specifically designed for that.
Consider 24V when the project needs longer continuous runs, lower current at the same wattage, and compatible 24V strips, controllers, and power supplies are available. However, keep 24V as a design option, not an automatic replacement for 5V or 12V.
First, prepare the voltage, total length, wattage per meter, strip type, color or control type, IP rating, power supply location, controller requirement, installation environment, drawings, and quantity. As a result, the technical team can review the project more accurately.
Before choosing 5V or 12V, define the installation conditions. In practice, the most useful details are voltage preference, total length, watts per meter, strip type, controller type, power supply location, environment, and drawings if available.
Finally, send these details for technical review before ordering, especially when the project involves long runs, addressable control, outdoor installation, custom lengths, or multiple power feed points.
