From rugged outdoor installations to moisture-prone indoor areas, knowing an LED fixture’s IP65 rating ensures you select lighting built to last. In this guide, I’ll explain IP65’s meaning, compare it with adjacent ratings, and showcase practical LED lighting applications for every environment.
IP65 means an enclosure is completely dust-tight and protected against low-pressure water jets from any direction—ideal for outdoor, wet-location, and dusty industrial lighting. Below, I’ll break down the IEC IP code, compare IP54 through IP67 in a clear table, and highlight real-world LED fixture examples to guide your selection.
The Ingress Protection (IP) code is an international standard (IEC 60529) that rates how well an enclosure shields against solids and liquids. It uses two digits: the first (0–6) denotes protection against dust and particles, while the second (0–9) indicates water resistance. An IP rating of “65” means a device is completely dust-tight (6) and can withstand low-pressure water jets (5).
To interpret any IP code, read the digits in order—first for solids, then for liquids. For example, IP54 offers limited dust protection and splash resistance, whereas IP67 adds temporary immersion capability. For a detailed breakdown of each level and real-world lighting examples, refer to our IP Rating Guide.
Key takeaway: The first digit rates dust ingress; the second rates water exposure.

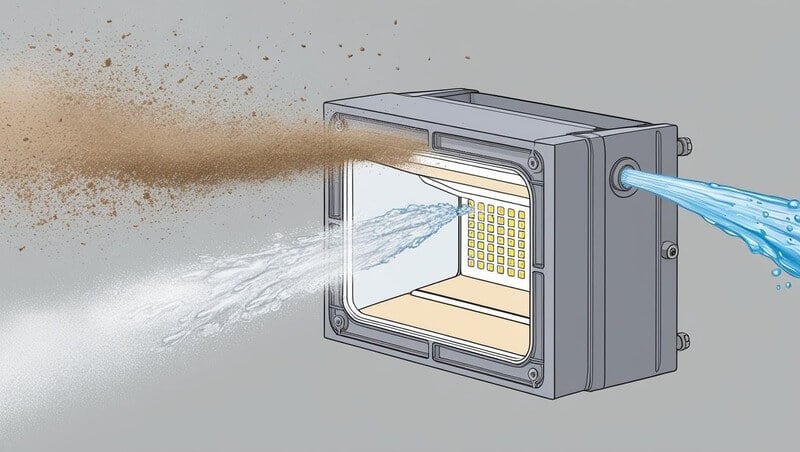

An IP65 rating tells you two things: dust-tight protection (6) and resistance to low-pressure water jets (5). “6” is the highest solid-ingress rating—no dust can enter—while “5” means the enclosure withstands water sprayed from a nozzle at up to 30 kPa from any direction, with no harmful effects.
Does IP65 mean waterproof?
Not fully. IP65 protects against water jets but does not cover submersion. For immersion, you need ratings like IP67 or higher.
Key takeaway: IP65 guarantees complete dust protection and defense against water jets—but not against temporary or deep immersion.
Below is a side-by-side comparison of common IP ratings to help you choose the right protection level for your LED lighting application.
| IP Rating | Dust Protection | Water Protection | Recommended Lighting Applications |
| IP54 | Limited ingress of dust | Splash-resistant from any direction | Indoor fixtures near entrances or light traffic areas |
| IP65 | Completely dust-tight | Protected against low-pressure water jets (5 kPa) | Outdoor soffits, wet-location strips, garden accents |
| IP66 | Completely dust-tight | Protected against high-pressure water jets (100 kPa) | Exterior signage, driveway lighting, high-flow wash areas |
| IP67 | Completely dust-tight | Protected against temporary immersion up to 1 m for 30 min | Inground fixtures, pond lighting, submerged accents |
Data source: IEC 60529 ingress protection standard and Mint Lighting guide
IP65-rated fixtures excel in environments exposed to dust and water jets but not full immersion. Here are four practical LED lighting scenarios where IP65 protection is ideal:
1.Outdoor Soffit & Eave Lighting
Install IP65-rated LED strip lights under roof overhangs and soffits to highlight architectural lines and provide safe perimeter lighting. These strips withstand wind-blown dust and low-pressure rain, ensuring consistent performance year-round. For secure mounting and moisture sealing, use our Outdoor LED Strip Lights with weatherproof channels.

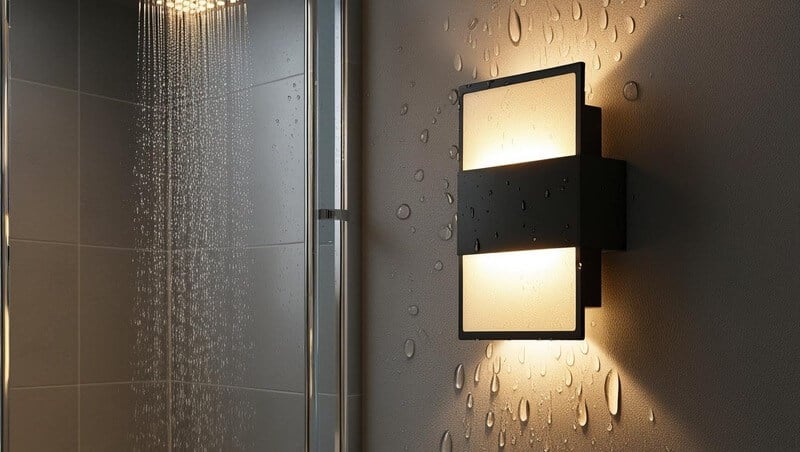

2. Wet-Location Wall Sconces & Accent Fixtures
In bathrooms, covered patios, or poolside areas, IP65-rated wall sconces and profile-mounted LED accents provide safe, splash-resistant illumination. These fixtures maintain brightness and color accuracy despite occasional water jets from showers or cleaning. Pair them with diffusers to prevent glare and enhance aesthetic appeal.

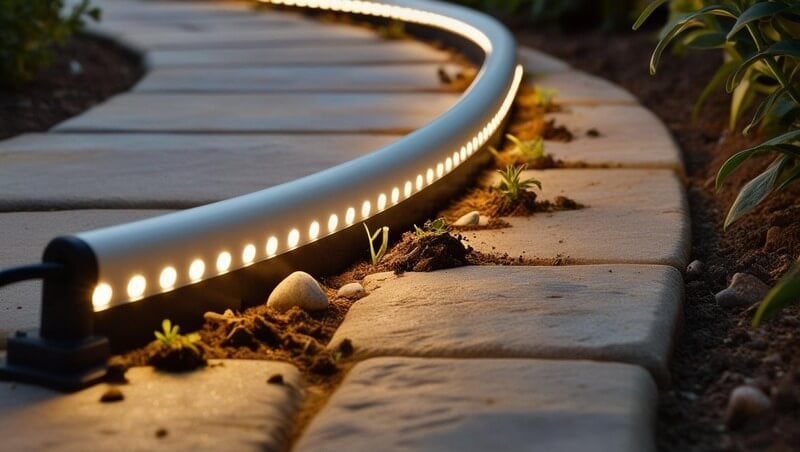

3.Garden Pathway & Landscape Accent Lighting
Use IP65 LED fixtures along walkways, planters, and garden borders to create safe, inviting outdoor paths. These lights resist dirt, leaves, and low-pressure irrigation sprays. RGBW variants add seasonal color accents, while white-only strips offer subtle guidance lighting. For easy installation, select our IP Rating Guide–certified landscape profiles.

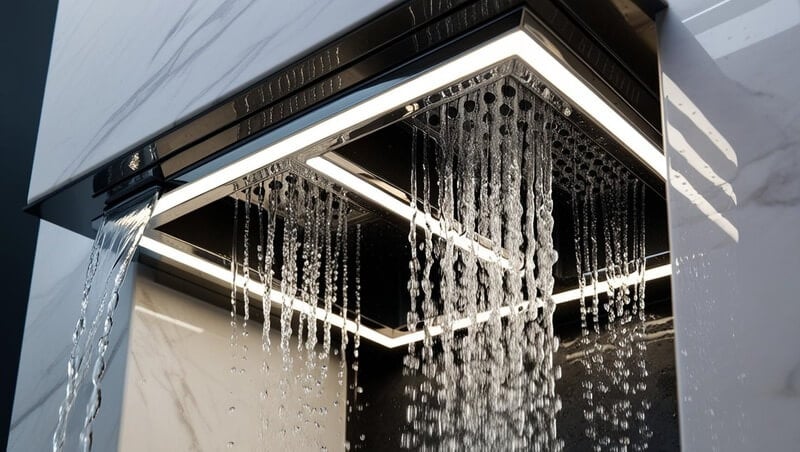

4. Shower-Safe Bathroom Lighting
Enhance bathroom safety and ambiance by installing IP65-rated LED strips within shower niches or above bath surrounds. These strips tolerate direct spray from showerheads without performance loss. Choose warm-white strips for a spa-like atmosphere or RGB for playful accents—just ensure all connections are silicone-sealed.
Key takeaway: IP65-rated LED lighting provides reliable, dust-tight, and water-jet-resistant illumination for outdoor soffits, wet-location fixtures, landscape accents, and shower installations.
Does IP65 mean waterproof?
IP65 indicates complete dust-tight protection and resistance to low-pressure water jets, but it does not guarantee full waterproofing. Fixtures rated IP65 withstand rain and cleaning sprays, yet they aren’t designed for submersion. For immersion protection, look for IP67 or higher ratings.
Which is better, IP65 or IP66?
IP66 builds on IP65 by handling high-pressure water jets (100 kPa) versus the low-pressure jets (5 kPa) of IP65. If your fixtures face powerful sprays—such as pressure washing or heavy rain—choose IP66. For general outdoor or splash-prone areas, IP65 usually suffices.
Is IP65 sufficient for shower or heavy rain use?
Yes—IP65-rated fixtures handle typical showerhead sprays and moderate rainfall. They protect against water jets and humidity but avoid direct submersion. Be sure to seal all wiring and use appropriate diffusers or profiles to maintain the rating in wet locations.
Is IP65 lighting safe for outdoor areas?
Absolutely—IP65 ratings cover wind-blown dust and rain exposure, making fixtures safe for patios, garden paths, and building exteriors. For extended outdoor installations, mount lights in weatherproof channels and follow our IP Rating Guide to ensure proper sealing.
LED lighting with an IP65 rating guarantees complete dust protection and defense against low-pressure water jets—perfect for outdoor soffits, wet-location fixtures, landscape accents, and shower installations. Armed with this knowledge, you can confidently select fixtures rated for your environment and ensure long-lasting performance.
To explore compatible products and detailed guidance, visit our Outdoor LED Strip Lights collection, download the IP Rating Guide, or watch our IP65 test demo video embedded above.
Key takeaway: IP65-rated fixtures provide reliable, dust-tight, and water-jet-resistant illumination for a wide range of lighting applications.
